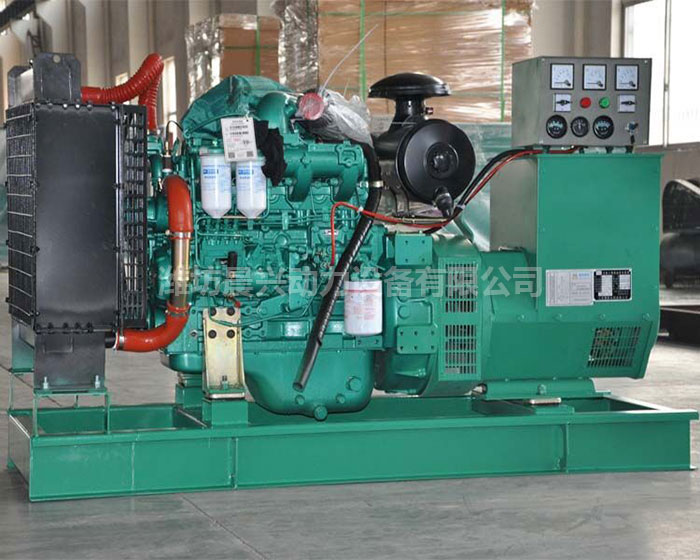

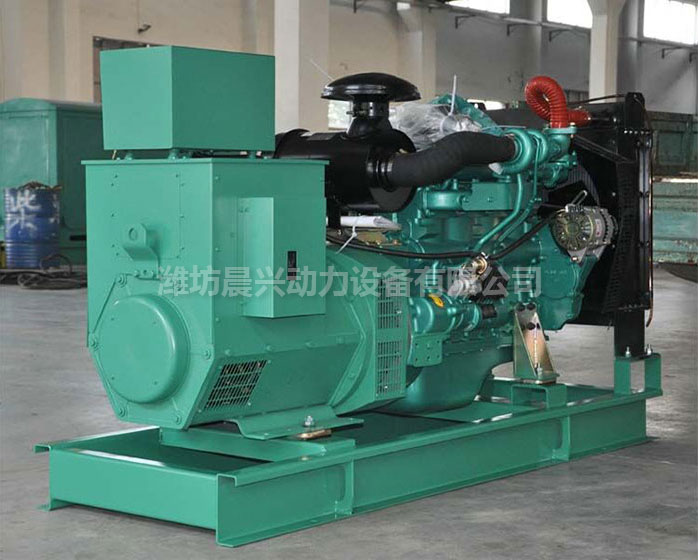

50KW Generating Set
|
Generating set parameters |
Parameters of the Diesel Engine |
Generator parameters |
|||
|
Unit model |
50GF |
Model |
YC4D85Z-D20 |
Model |
50GF |
|
Output power |
50kw |
Air intake type |
Supercharge |
Rated power |
50kw |
|
Power factor |
COSΦ=0.8(Lagging) |
Number of cylinders |
4 |
Output factor(Lagging) |
COSΦ=0.8 |
|
Output voltage |
400V/230V |
Cylinder diameter * stroke (mm) |
108×115 |
Rated voltage |
400V/230V |
|
Output current |
90A |
Total displacement L |
4.214 |
Output current |
90A |
|
Rated frequency |
50Hz |
Compression ratio |
17.5:1 |
Rated frequency |
50Hz |
|
Steady voltage regulation (%) |
≤±1 |
Rated power/rotating speed kW/r/min |
55/1500 |
Insulation level |
H Number |
|
Voltage fluctuation rate (%) |
≤±0.5 |
Power/revolving speed for 1 hour kW/r/min |
60/1500 |
Power/revolving speed for 1 hour |
IP22 |
|
Transient voltage regulation (%) |
＋20～－15 |
Fuel consumption rate g/(kW·h) |
≤205 |
Wiring method |
Three-phase and four-line, Y type connection |
|
Voltage settling time（s） |
≤1 |
Engine oil capacity L |
11-13 |
Regulating mode |
Automatic voltage regulator (AVR) |
