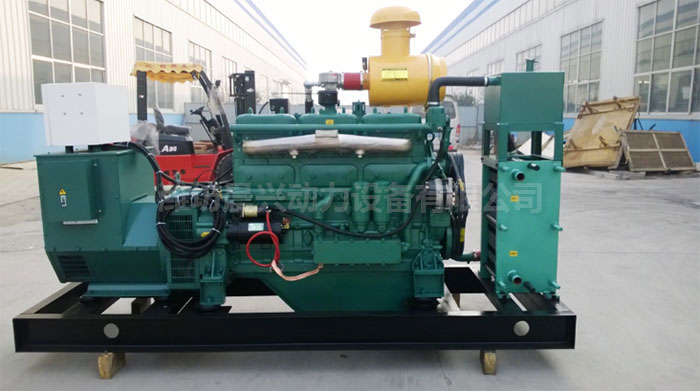

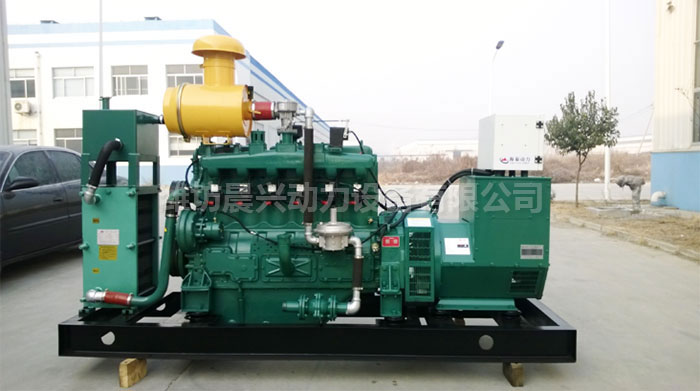

120kw gas generating set
|
Generating set parameters |
Engine parameters |
Generator parameters |
|||
|
Unit model |
120GF |
Model |
6126ZLD-NG |
Model |
120GF |
|
Output power |
120kw |
Air intake type |
Turbocharge |
Rated power |
120kw |
|
Power factor |
COSΦ=0.8(Lagging) |
Number of cylinders |
6 |
Output factor(Lagging) |
COSΦ=0.8 |
|
Output voltage |
400V/230V |
Cylinder diameter * stroke (mm) |
126/155 |
Rated voltage |
400V/230V |
|
Output current |
216A |
Compression ratio |
Output current |
216A |
|
|
Rated frequency |
50Hz |
Rated power/rotating speed kW/r/min |
120/1500 |
Rated frequency |
50Hz |
|
Steady voltage regulation (%) |
≤±2.5 |
Power/revolving speed for 1 hour kW/r/min |
150/1500 |
Insulation level |
H Number |
|
Voltage fluctuation rate (%) |
≤±0.3 |
Fuel consumption rate m3/(kW·h) |
≤0.3 |
Protection grade |
IP22 |
|
Transient voltage regulation (%) |
＋25～－30 |
Lubrication method |
Pressure, splash hybrid |
Wiring method |
Three-phase and four-line, Y type connection |
|
Voltage settling time （s） |
≤6 |
Startup method |
Electric starting |
Regulating mode |
Automatic voltage regulator (AVR) |
