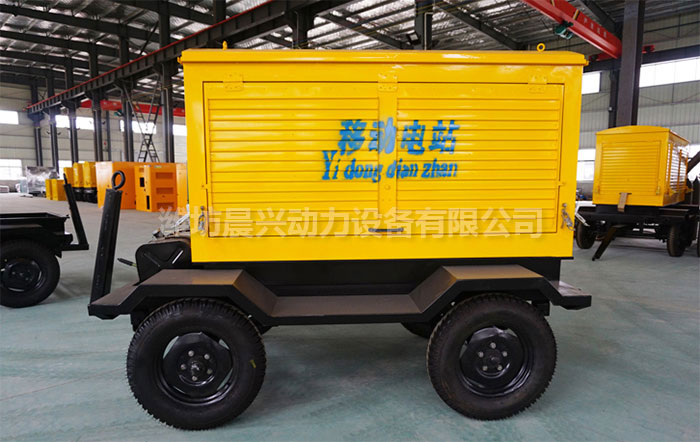

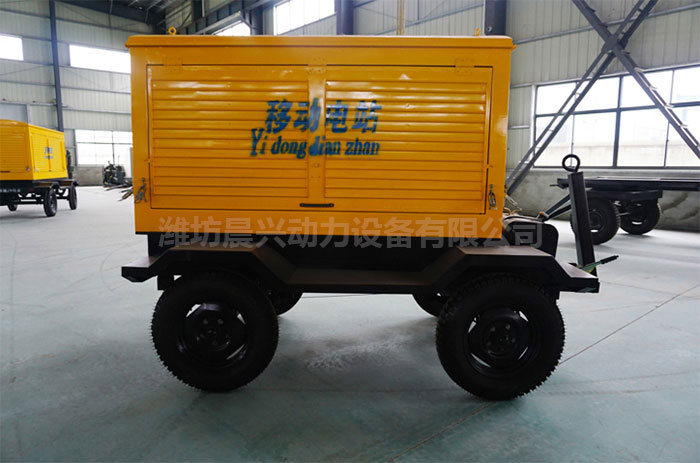

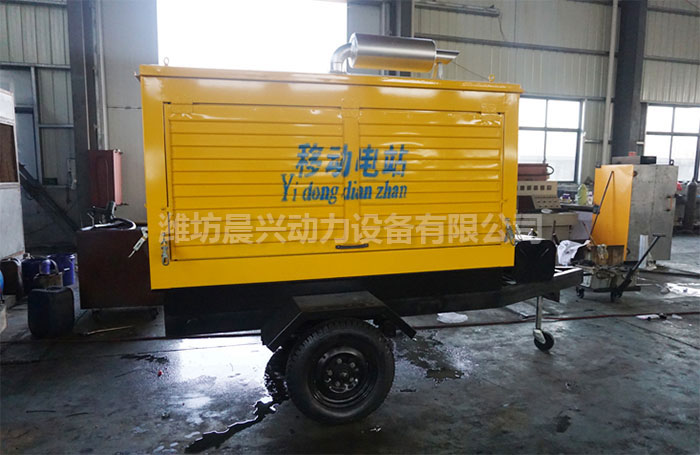

30KW mobile trailer generating set
Mobile power station is a mobile power supply designed for the operation units of field construction. Its cover is made of galvanized sheet and features corrosion resistance and good sealing. The windows and doors on all sides are automatically supported by hydraulic pressure, which is easy to open. The chassis wheels can, in accordance with the user's requirements, be designed into two wheels, four wheels, six wheels. It is also designed with manual, automatic, pneumatic and inertial braking brake devices, and the braking is stable, which is an ideal mobile power source for all field construction units.
|
★移動拖車參數： |
|
|
規格型號：30GF |
適用機型：康明斯、玉柴、濰柴、揚柴等 |
|
操控方式：選配儀表型、四保護型、自動化型 |
輪胎規格：4輪650-16 |
|
軸距：1250mm |
輪距：1360mm |
|
整車尺寸：2350×1600×2020（L×W×H mm） |
箱體尺寸：1900×1000×1000（L×W×H mm） |
|
油箱容積： |
選配附件：轉盤、氣剎制動、慣性制動、支撐腿、轉向燈以及放線盤 |
|
箱體重量：500kg |
|
